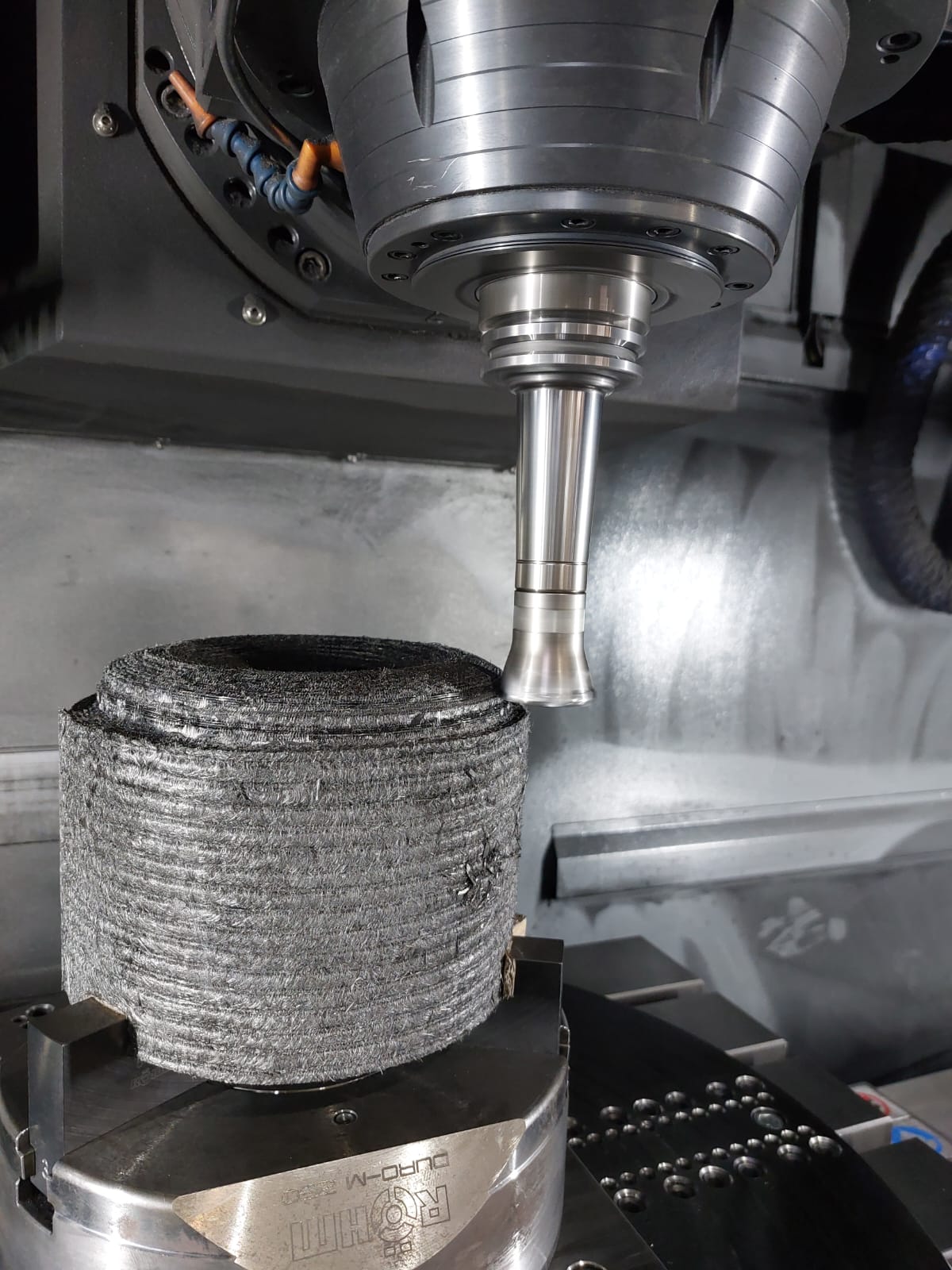

The machining phase is an integral part of certain material production processes.
It enables the achievement of desired geometries when near-net shape forming is not feasible or is used to remove outer material layers to facilitate better densification, as seen in CVI processes
Close

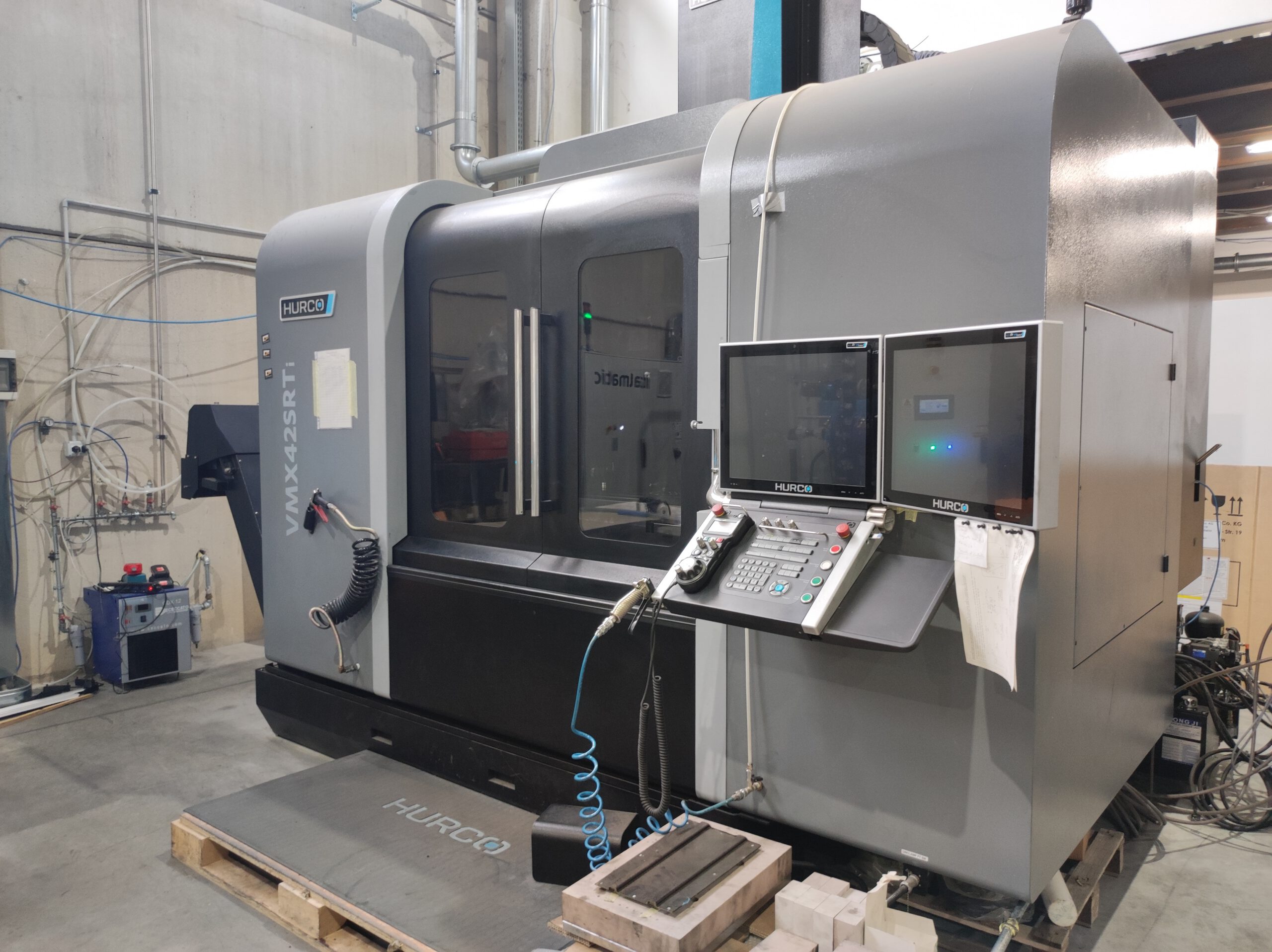

| Machine parameters | Values |
| X-axis range | 1067 mm |
| Y-axis range | 610 mm |
| Z-axis range | 610 mm |
| Maximum load (if on a rotating table) | 500 kg |
| Rotating table diameter | 600 mm |
| Tool holder | ISO 40 |
| High-speed X and Y axes | 38000 mm/min |
| High-speed Z axis | 32000 mm/min |
| High-speed B axis | 50 rpm |
| High-speed C axis | 100 rpm |
| Total number of tools | 40 |
| Max. tool diameter (when adjacent stations are occupied) | 76 mm |
| Max. tool diameter (adjacent stations empty) | 110 mm |
| Maximum allowed length of the tool in stock | 250 mm |
| Maximum tool weight | 7 kg |
Close

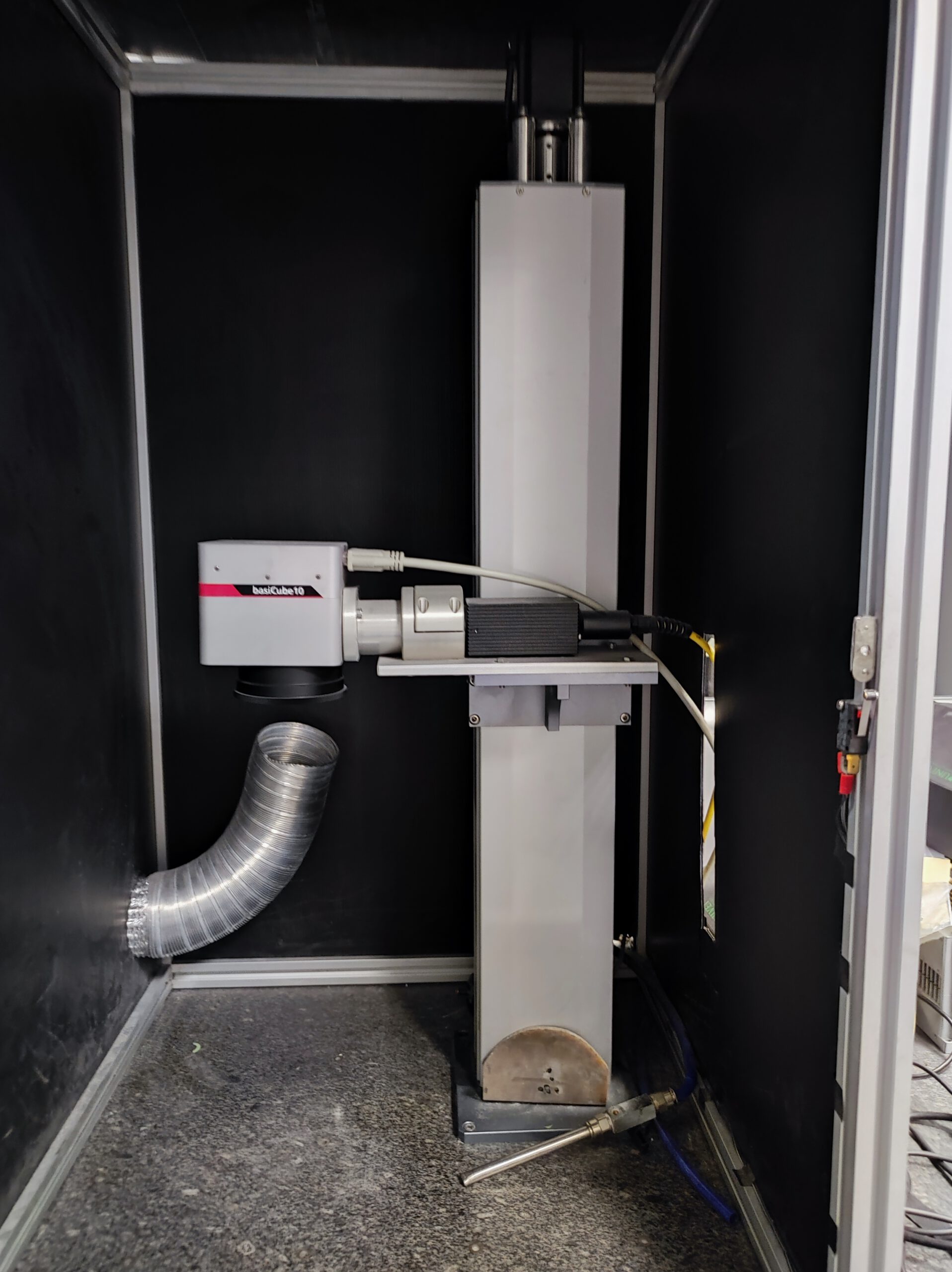

| Laser | 50W Q-Switched Pulse Fiber Laser |
| Central wavelength | 1064 nm |
| Output beam diametr | 7 ± 1 mm |
| M2 | <1.6 |
| Pulse Width Range | 120-150 ns |
