Thermal
treatment

The company is equipped with furnaces for high-temperature treatments in controlled atmospheres, including large-scale high-temperature and pyrolysis furnaces capable of processing large components.

Forno TK

Debinding and Pyrolysis

Forni HT

HT thermal treatment

Close

Debinding
and Pyrolysis


Debinding and pyrolysis are essential thermal processes carried out in controlled inert atmospheres to effectively remove organic binders from preformed parts.

These crucial steps prepare advanced ceramics and carbon fiber composites for the next phase—densification—ensuring superior material performance and quality.

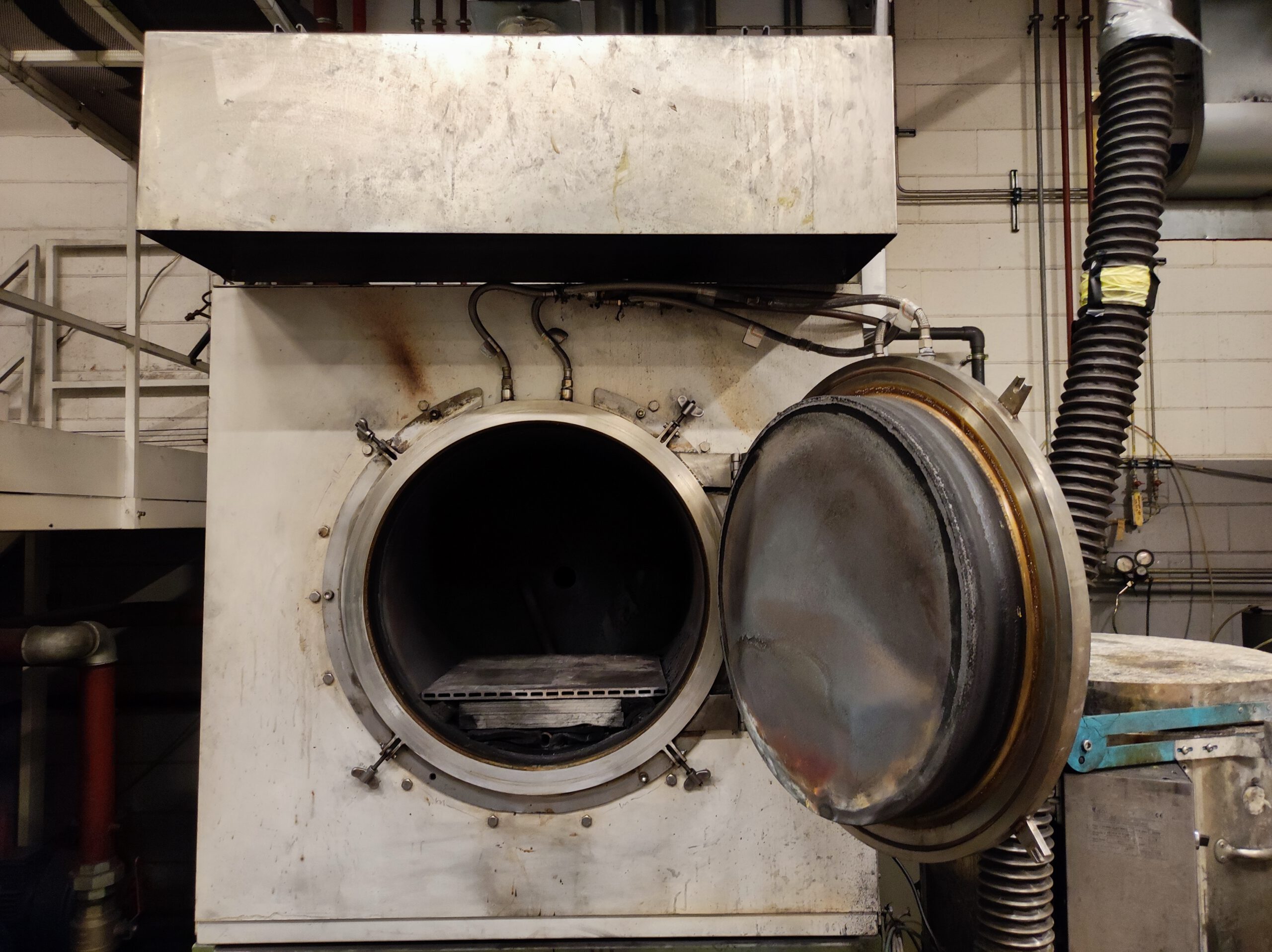

Debinding Oven

TK
Chamber atmosphereAir/Nitrogen
Max temperature900°C
Chamber volume160L (D=560mm h=650mm)

Debinding Oven

Thermoconcept
Chamber atmosphereAir/Nitrogen
Max temperature650°C
Chamber volume540L (750x900x800mm)

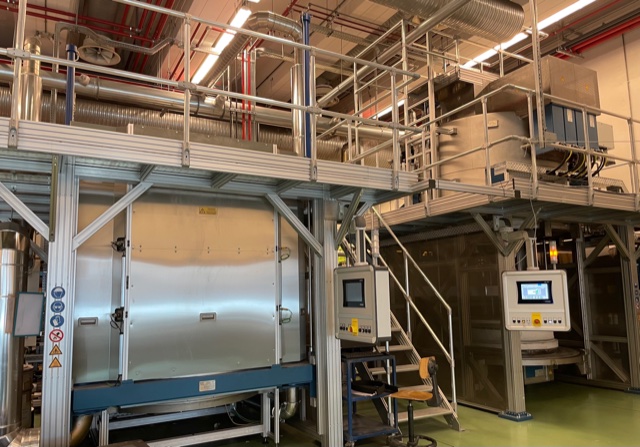

Debinding Oven

FCT
Chamber atmosphereAir/Nitrogen
Max temperature950°C
Chamber volume1766L (D=1500 mm, H=1000 mm)(750x900x800mm)

Close

HT thermal
treatment


Sintering is a thermal treatment process used to bond particles cohesively and enhance the material’s strength. Depending on the material, sintering can be performed in an oxidizing atmosphere, under vacuum, or at partial gas pressure.

Vacuum sintering minimizes harmful oxidation and other reactions by limiting gas presence. It also enables precise control over temperature, pressure, and atmosphere conditions.

Petroceramics is equipped with a range of furnaces capable of vacuum, air, and partial pressure sintering. These processes are applied to a wide variety of oxide and non-oxide ceramics and composites, serving key industries such as automotive and aerospace.

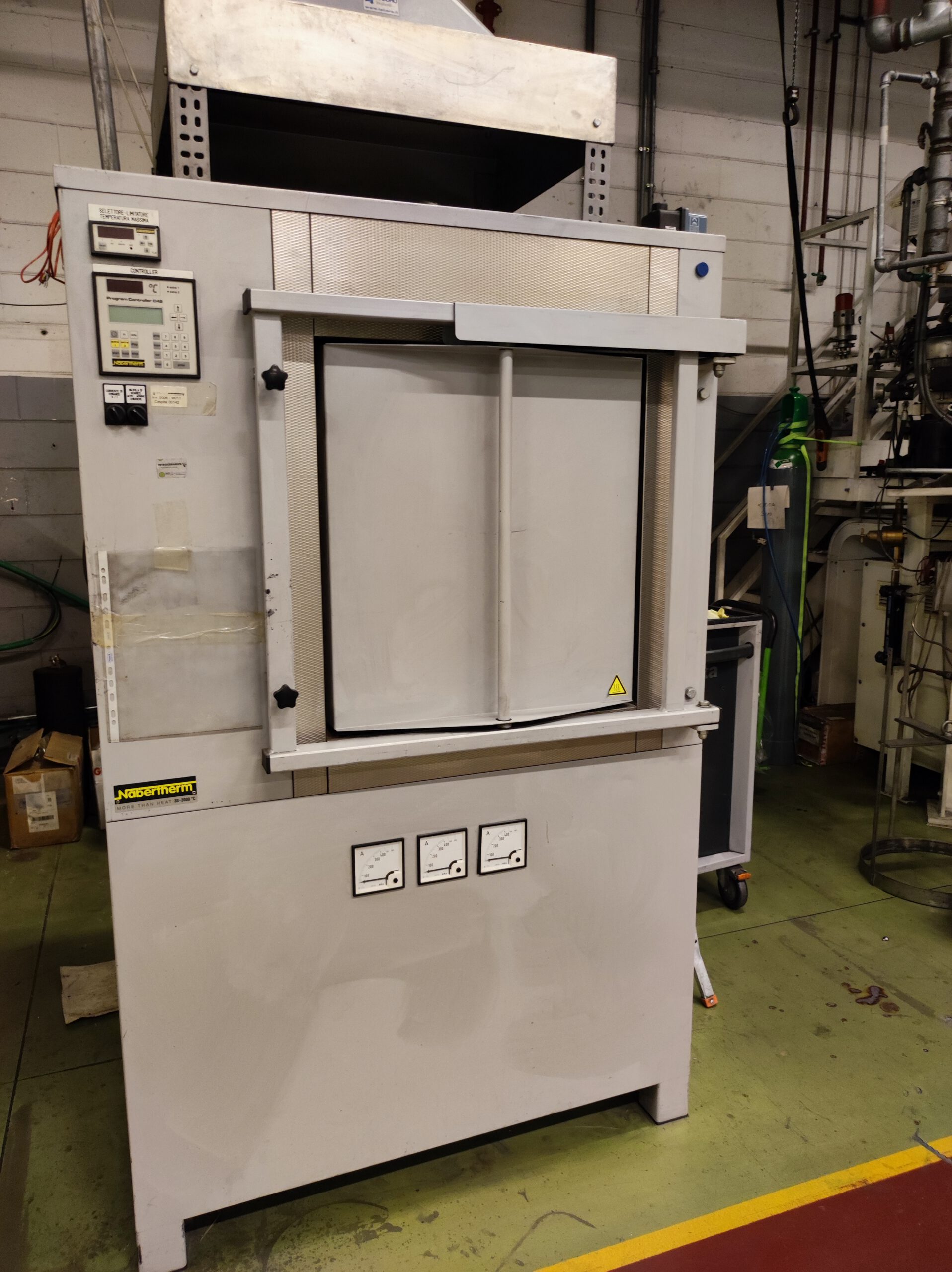

Oven

Nabartherm
Chamber atmosphereAir/Nitrogen
Max temperature1750°C
Chamber volume150L (500x550x550mm)

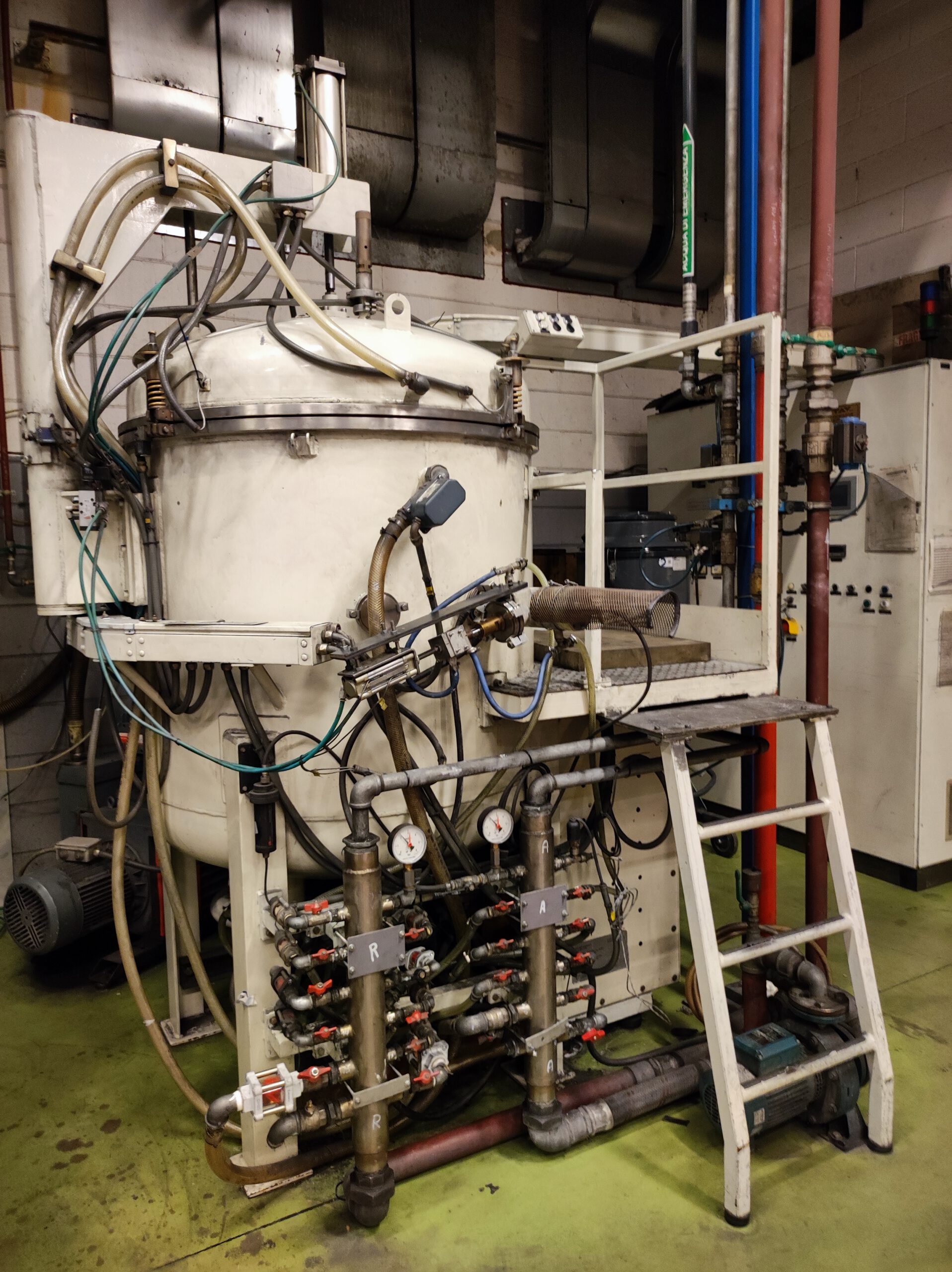

Vacuum oven

TAV 329
Max vacuum10-3mbar
Max temperature2000°C
Chamber volume50L (L=420mm, H=400mm)

Vacuum/High pressure oven

FCT
Max pressure100bar
Max vacuum10-3mbar
Max temperature (Vacuum)2550°C
